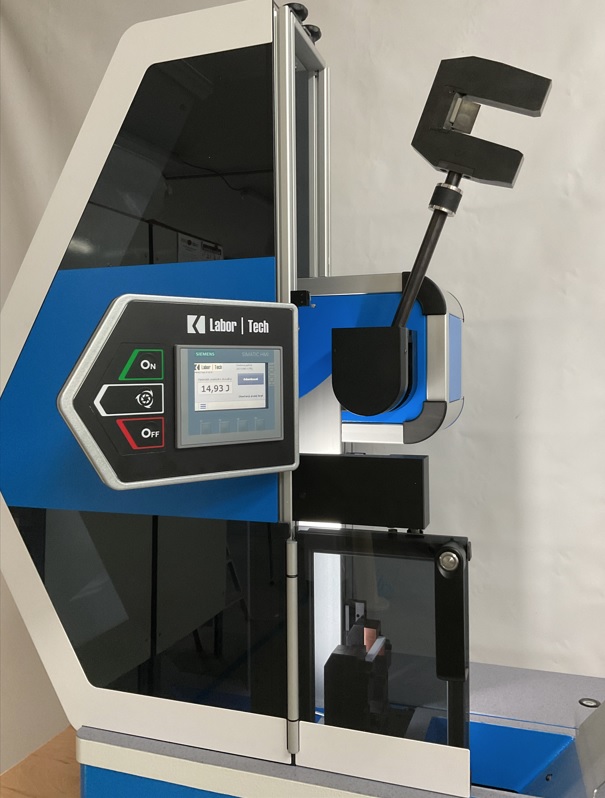

CHKTest Schlagpendelhämmer zur Prüfung von Kunststoffen

Kunststoffprüfung ohne Kompromisse – intelligentes Design, einfache Bedienung, kostengünstige Lösung …

Die neue CHKTest-Serie von Pendelschlaghämmern für die Kunststoffprüfung wurde umfassend überarbeitet und ist Teil der NEUEN Edition 30, die 30 Jahre Innovation von LABORTECH feiert. Diese Edition bietet ein neues Design und zahlreiche technische Verbesserungen, die Effizienz, Genauigkeit und Bedienkomfort erhöhen.

CHKTest-Systeme sind für Izod- und Charpy-Schlagprüfungen an Kunststoff- und Gummiproben gemäß den internationalen Normen ISO 179, ISO 180, ASTM D6110, ISO 13802, ISO 8256, ISO 9854-1, ASTM D256 und ASTM D1822 konzipiert. Das verbesserte Design bietet die kostengünstigste Konfiguration für Charpy-Versuche im Bereich von 1 J bis 50 J und Izod-Versuche im Bereich von 1 J bis 22 J. Der modulare Aufbau ermöglicht die Auswahl verschiedener Hammertypen, Antriebe und Schlaggeschwindigkeiten und ermöglicht so eine individuelle Anpassung an die spezifischen Anforderungen von Prüflaboren.

CHKTest-Schlaghämmer bieten maximale Flexibilität und Effizienz bei der Prüfung. Ihr modularer Aufbau ermöglicht eine einfache Anpassung an die Anforderungen von Qualitätskontroll- und F&E-Prüflaboren. Mit dieser neuen Generation von Schlagprüfsystemen erhalten Sie eine zuverlässige und innovative Lösung für präzise und wiederholbare Schlagprüfungen nach strengsten internationalen Normen.

CHKTest – D to 5J

Type of material being tested

PLASTICS

Testing standards

CHARPY ISO 179, CHARPY ASTM D 6110, IZOD ISO 180, IZOD ASTM D 2596, IZOD ASTM D 4812, IMPACT TENSILE ISO 8256-A-B CHARPY METALS ASTM E 23, CHARPY METALS DIN 50115

Extension modules

SW IMPACTTest, TEMPERATURE, INSTRUMENTACE, ROBOTICKÉ

MORE INFORMATION

CHKTest – D to 25J

Type of material being tested

PLASTICS

Testing standards

CHARPY ISO 179, CHARPY ASTM D 6110, IZOD ISO 180, IZOD ASTM D 2596, IZOD ASTM D 4812, IMPACT TENSILE ISO 8256-A-B CHARPY METALS ASTM E 23, CHARPY METALS DIN 50115

Extension modules

SW IMPACTTest, TEMPERATURE, INSTRUMENTACE, ROBOTICKÉ

MORE INFORMATION

CHKTest – D to 50J

Type of material being tested

PLASTICS AND METALS

Testing standards

CHARPY ISO 179, CHARPY ASTM D 6110, IZOD ISO 180, IZOD ASTM D 2596, IZOD ASTM D 4812, IMPACT TENSILE ISO 8256-A-B, CHARPY METALS ASTM E 23, CHARPY METALS DIN 50115

Extension modules

SW IMPACTTest, INSTRUMENTATION, ROBOTIC WORKSTATION, TEMPERATURE

MORE INFORMATION

CHKTest to 50J

Type of material being tested

PLASTICS AND METALS

Testing standards

CHARPY ISO 179, CHARPY ASTM D 6110, IZOD ISO 180, IZOD ASTM D 2596, IZOD ASTM D 4812, IMPACT TENSILE ISO 8256-A-B, CHARPY METALS ASTM E 23, CHARPY METALS DIN 50115

Extension modules

INSTRUMENTATION, ADJUSTABLE ANGLE, ROBOT, TEMPERATURE

MORE INFORMATION

MEZERA

KEY FEATURES OF THE CHKTest PLASTICS AND METALS SERIES

Test methods: Charpy, Izod or tensile impact tests of metal samples.
Centrally ergonomically placed controls ensuring simple operation and testing including indication of individual process statuses.

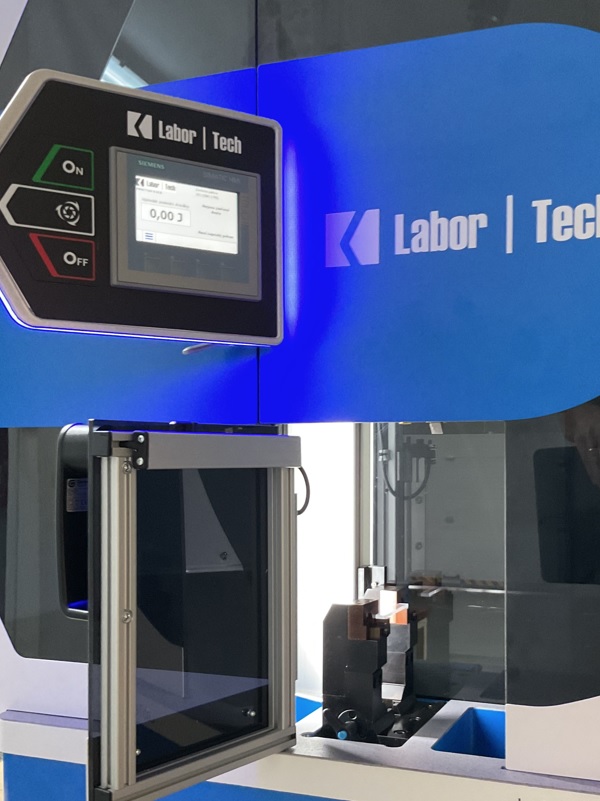

Compact machine control via integrated 4″ display (D series) or 21.5″ touch LCD monitor.
Automatic opening of the entrance door after impact.

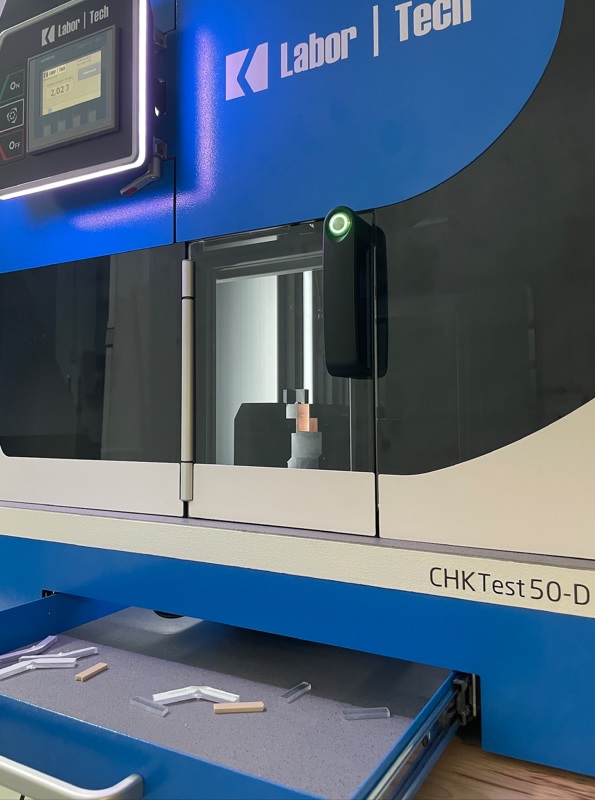

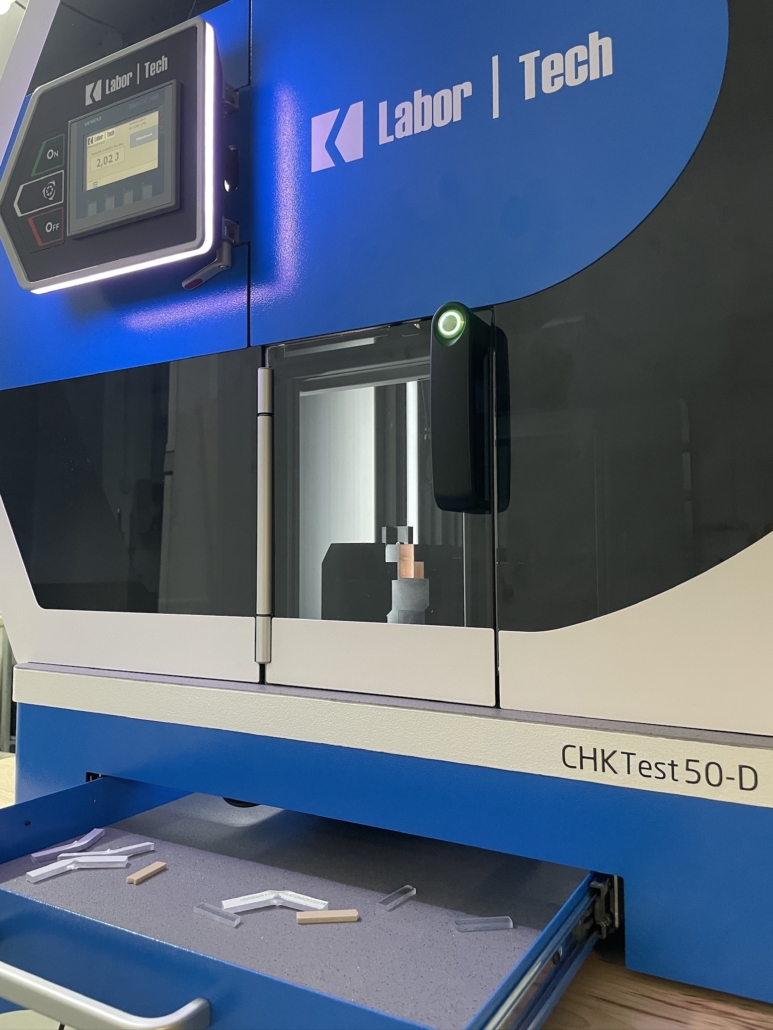

Integrated drawer for collecting samples in the machine frame.
Test start electronically with safety button.
Manual arm lift (model 0 or 1) or automatic (model 3 and higher).
High-resolution incremental sensor for precise angle measurement.
Automatic identification of ram and cutting edges in the higher series.

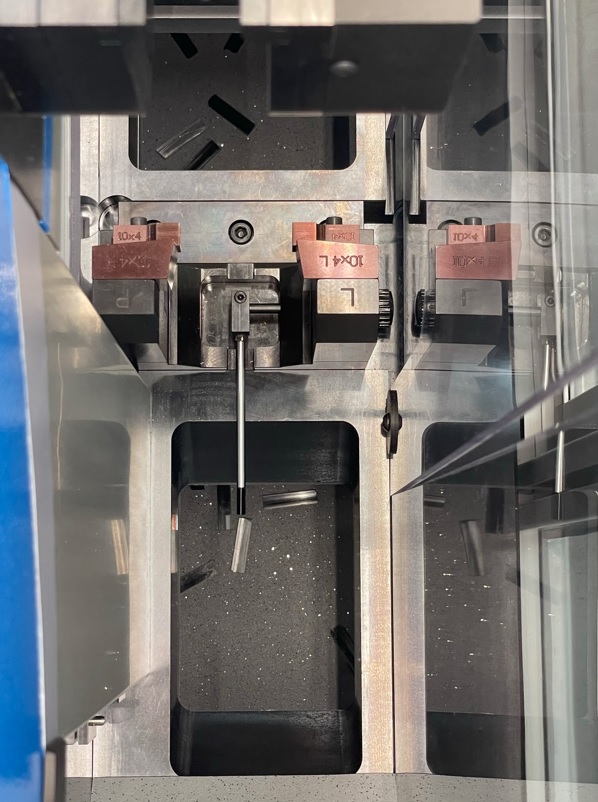

New type of sample collection for impact with 99% efficiency.

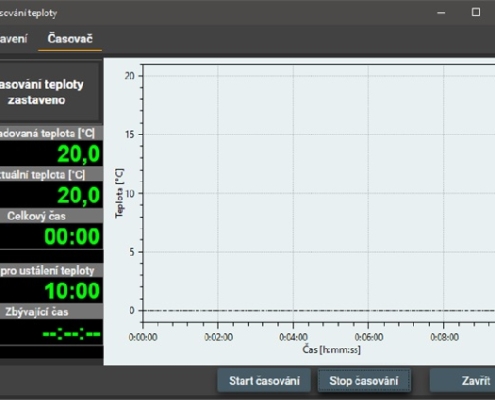

Machine expansion with IMPACTTest software, instrumentation, automatic angle adjustment, temperature monitoring …
Machine workspace illumination.
Easily removable protective cover with electrical monitoring.

MEZERA

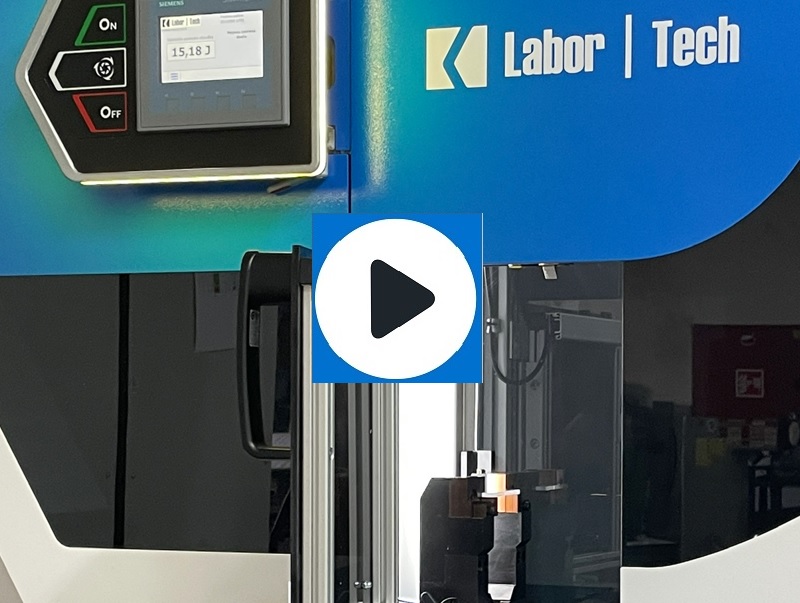

VIDEOS ON CHK Test IMPACT HAMMERS up to 50J

NEW Edition 30

NEW Impact hammer CHKTest 50-D.3

Standard impact test for machines CHKTest 50-D according to CHARPY ISO 179

NEW Edition 30

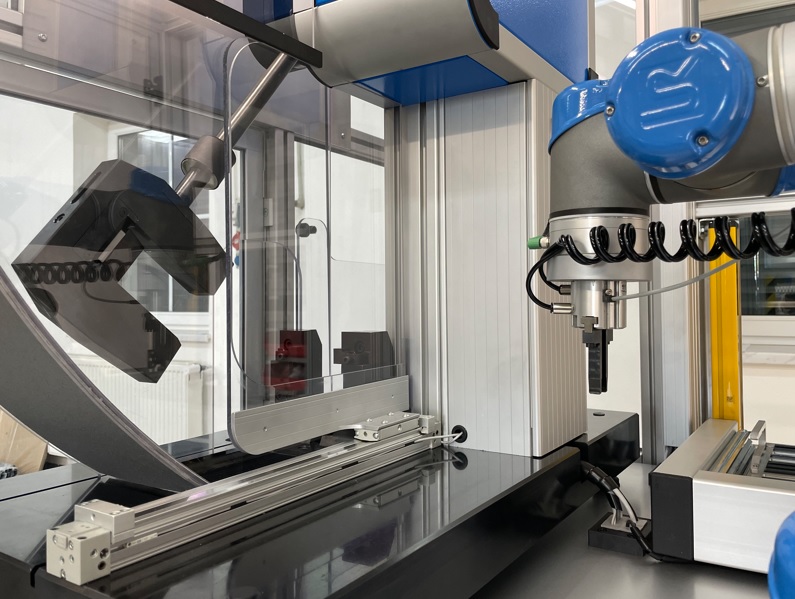

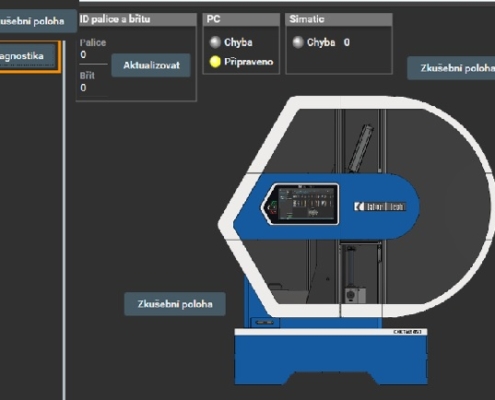

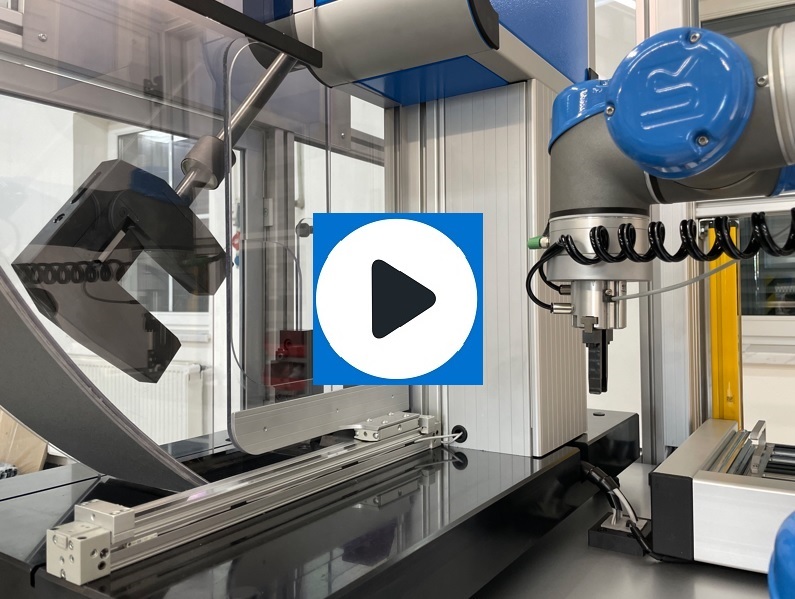

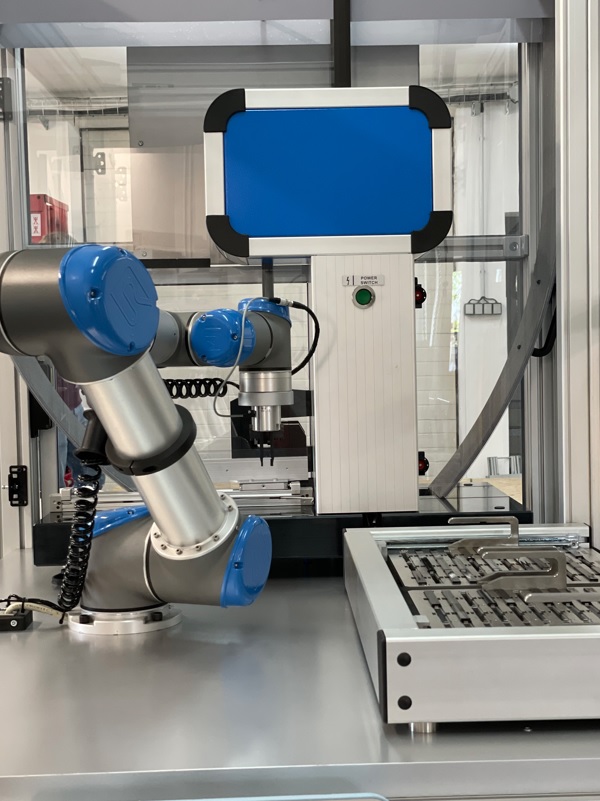

X-RUNNER – BLUE Robotic System with CHKTest 50

Automatic robotic systems X-RUNNER with impact hammer CHKTest 50 + BR module

NEW Edition 30

NEW Impact hammer CHKTest 50-D.3

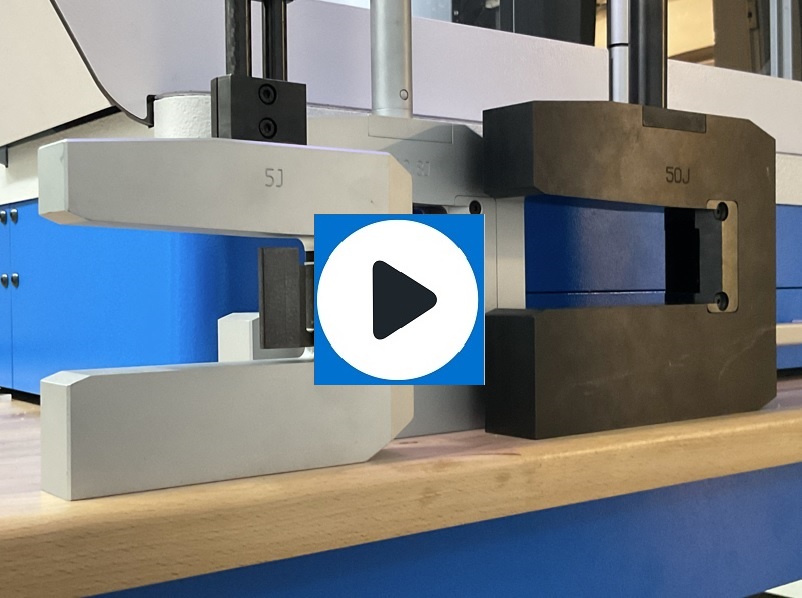

Impact pedull hammer for plastics type CHKTest 50-D – hammer replacement.

Do you have any questions about our products?

Please feel free to contact our product experts.

We look forward to hearing from you.

Specific demand

–

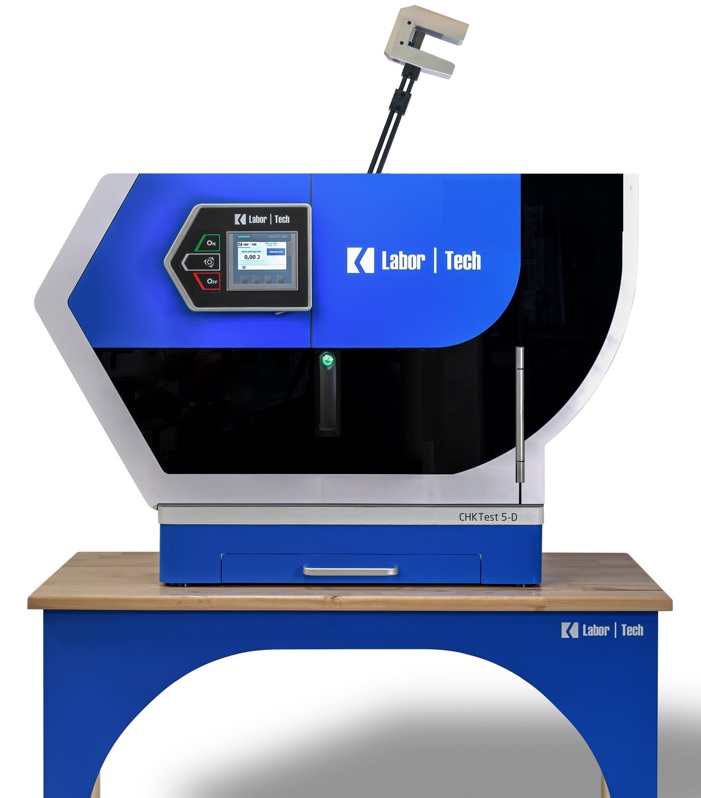

CHKTest 5-D.x – NEW Edition 30

Impact hammer with manual stroke and energy up to 5J …

CHKtest 5-D.0

Impact hammer up to 5J with manual lifting of the hammer to the starting position.

Hammer code – 1.09011125
Number of starting positions of the hammer: 1
Setting the starting angle of the hammer – option to choose according to the type of test (2.9 m/s or 3.46 m/s)
Test evaluation – using a 4″ touch LCD display

Supplied inputs and let us work. We will fulfill your ideas.

CHKtest 5-D.1

Impact hammer up to 5J with manual lifting of the hammer to the starting position.

Hammer code – 1.09011025
Number of starting positions of the hammer: 2 – manually adjustable
Setting the starting angle of the hammer – 2.9 m/s or 3.46 m/s
Test evaluation – using a 4″ touch LCD display

Suppose the inputs and let us work. We will fulfill your ideas.

MEZERA

TEST TYPE

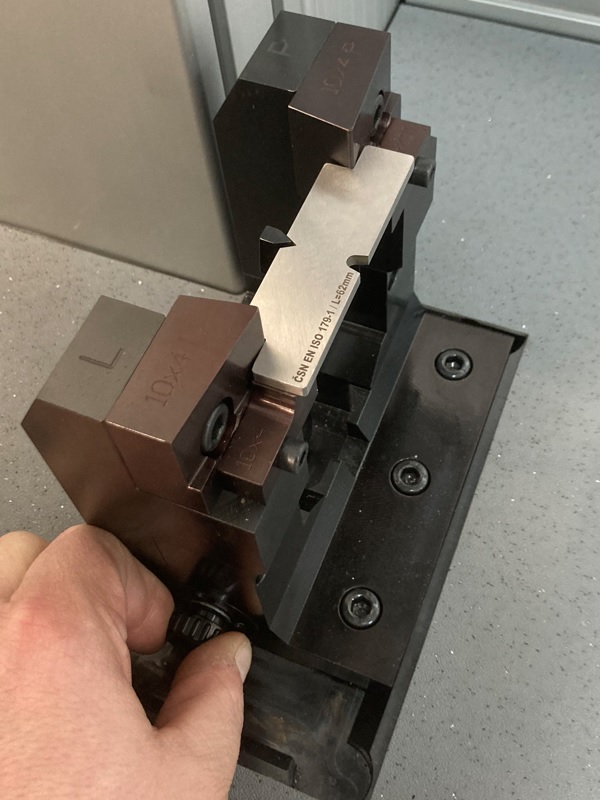

CHARPY PLASTICS
CHARPY PLASTICS

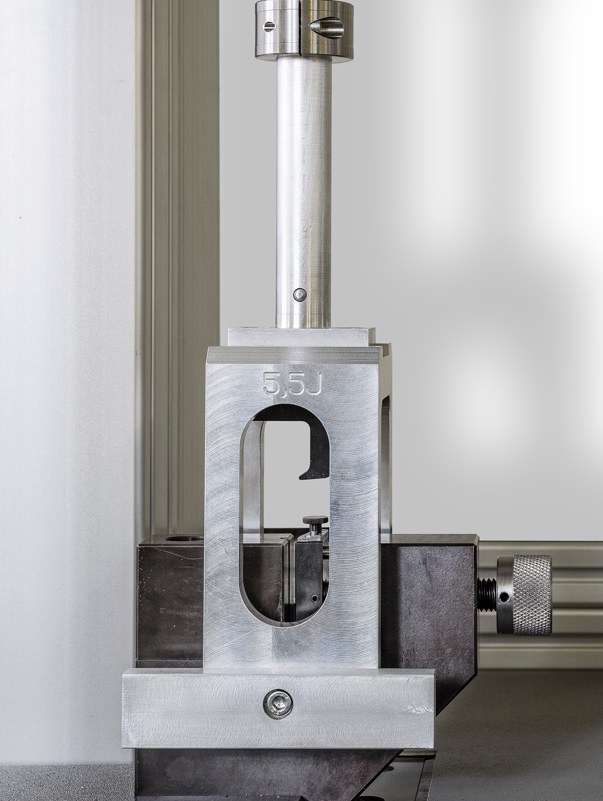

IZOD
IZOD
IZOD

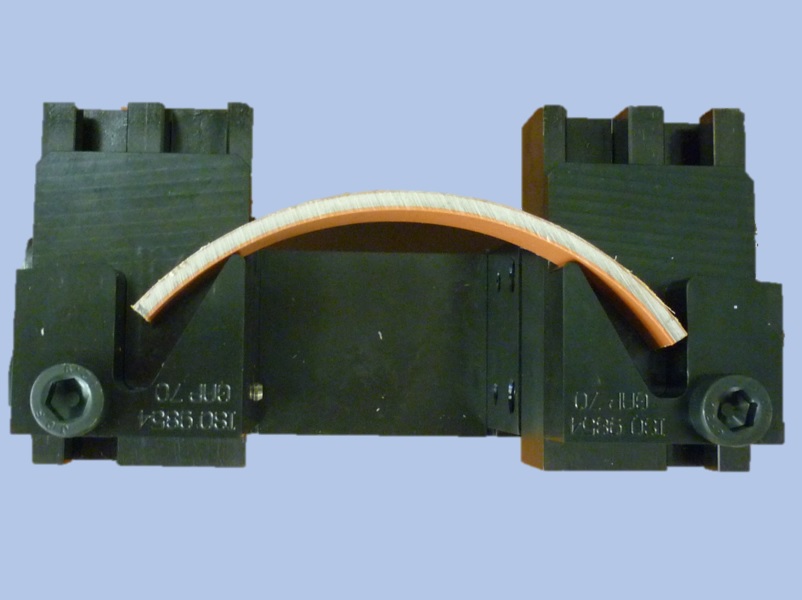

TENSILE TEST
TENSILE TEST

STANDARD
ISO 179 – 2.9 m/s
ASTM D 6110 – 3.46 m/s
ISO 180 – 3.5 m/s
ASTM D 256 – 3.46 m/s
ASTM D 4812 – 3.46 m/s
ISO 8256-A-B – 2.9 m/s
ISO 8256-A-B – 3,46 m/s

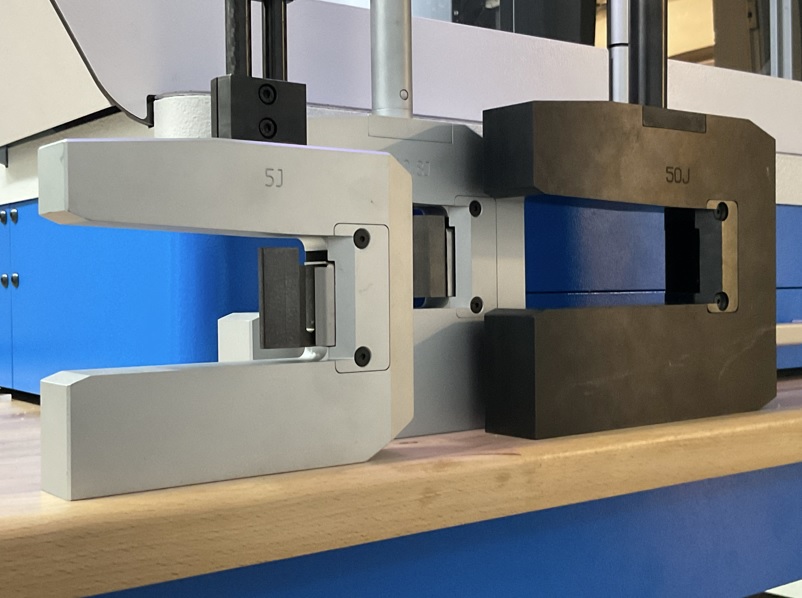

HAMMER
0.5J, 1J, 2J, 4J, 5J
0.5J, 1J, 2.7J, 5.4
1J, 2.75J, 5.5J
1J, 2.75J, 5.5J
1J, 2.75J, 5.5J
2J, 4J
1.35J, 2.7J, 5.4J

Basic and expandable modules for CHKTest 5.x machines

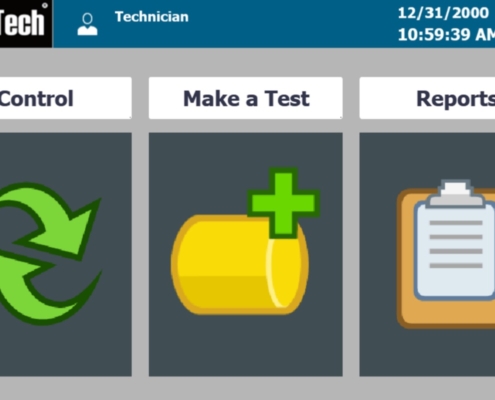

INTEGRATED SOFTWARE IN THE IMPACTest-S MACHINE

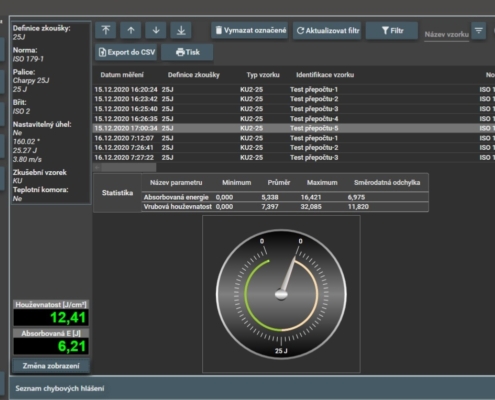

ADVANCED PC SOFTWARE IMPACTest

EXTENDED MODULE FOR IMPACTest SOFTWARE

CHKTest 25-D.x – NEW Edition 30

Impact hammer with manual stroke and energy up to 25J …

CHKTest 25-D.0

Impact hammer up to 25J with manual lifting of the hammer to the starting position.

Hammer code – 1.09010925
Number of starting positions of the hammer: 1
Setting the starting angle of the hammer – option to choose according to the type of test (2.9 m/s or 3.46 m/s)
Test evaluation – using a 4″ touch LCD display

Supplied inputs and let us work. We will fulfill your ideas.

CHKTest 25-D.1

Impact hammer up to 25J with manual lifting of the hammer to the starting position.

Hammer code – 1.09010825
Number of default stick positions: 3 – manually adjustable
Default stick angle settings – 2.9 m/s, 3.46 m/s and 3.8 m/s
Exam evaluation – using a 4″ touch LCD display

Supply the inputs and let us work. We will fulfill your ideas.

MEZERA

TEST TYPE
CHARPY PLASTICS
CHARPY PLASTICS
CHARPY PLASTICS
IZOD
IZOD
IZOD
TENSILE TEST
TENSILE TEST

STANDARD
ISO 179 – 2.9 m/s
ISO 179 – 3.8 m/s
ASTM D 6110 – 3.46 m/s
ISO 180 – 3.5 m/s
ASTM D 256 – 3.46 m/s
ASTM D 4812 – 3.46 m/s
ISO 8256-A-B – 2.9 m/s
ISO 8256-A-B – 3,46 m/s

HAMMER
0.5J, 1J, 2J, 4J, 5J
7.5J, 15J, 25J
0.5J, 1J, 2.7J, 5.4J, 10.8J, 21.6J
1J, 2.75J, 5.5J, 11J, 22J
1J, 2.75J, 5.5J, 11J, 22J
1J, 2.75J, 5.5J, 11J, 22J
2J, 4J, 7.5J, 15J, 25J
1.35J, 2.7J, 5.4J, 10.8J, 21.6J

Basic and expandable modules for CHKTest 25.x machines

INTEGRATED SOFTWARE IN THE IMPACTest-S MACHINE

ADVANCED PC SOFTWARE IMPACTest

EXTENDED MODULE FOR IMPACTest SOFTWARE

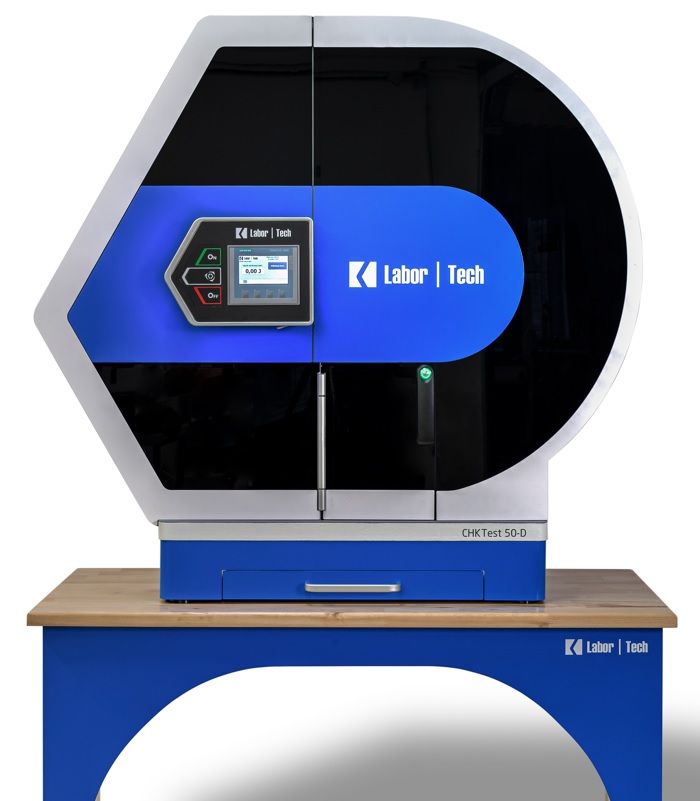

CHKTest 50-D.x – NEW Edition 30

Impact hammer with electric hammer stroke and energy up to 50J …

CHKTest 50-D.2

Impact hammer up to 50J with electric lifting of the hammer to the starting position.

Hammer code – 1.09010725
Number of starting positions of the hammer: 3
Setting the starting angle of the hammer – manually – 2.9 m/s, 3.46 m/s and 3.8 m/s
Test evaluation – using a 4″ touch LCD display

Suppose the inputs and let us work. We will fulfill your ideas.

CHKTest 50-D.3

Impact hammer up to 50J with electric lifting of the hammer to the starting position.

Hammer code – 1.09010625
Number of initial hammer positions: 3
Setting the initial hammer angle – automatically from the software – 2.9 m/s, 3.46 m/s and 3.8 m/s
Test evaluation – using a 4″ touch LCD display
Machine expansion – possibility of performing INSTRUMENTATION, X-RUNNER, etc.

Supplied inputs and let us work. We will fulfill your ideas.

MEZERA

TEST TYPE
CHARPY PLASTICS
CHARPY PLASTICS
CHARPY PLASTICS
CHARPY METAL
CHARPY METAL
IZOD
IZOD
IZOD
TENSILE TEST
TENSILE TEST

STANDARD
ISO 179 – 2.9 m/s
ISO 179 – 3.8 m/s
ASTM D 6110 – 3.46 m/s
ASTM E 23 – 3.8 m/s
DIN 50115
ISO 180 – 3.5 m/s
ASTM D 256 – 3.46 m/s
ASTM D 4812 – 3.46 m/s
ISO 8256-A-B – 2.9 m/s
ISO 8256-A-B – 3,46 m/s

HAMMER
0.5J, 1J, 2J, 4J, 5J
7.5J, 15J, 25J, 50J
0.5J, 1J, 2.7J, 5.4J, 10.8J, 21.6J
7.5J, 15J, 25J, 50J
7.5J, 15J, 25J, 50J
1J, 2.75J, 5.5J, 11J, 22J
1J, 2.75J, 5.5J, 11J, 22J
1J, 2.75J, 5.5J, 11J, 22J
2J, 4J, 7.5J, 15J, 25J
1.35J, 2.7J, 5.4J, 10.8J, 21.6J

INSTRUMENTED HAMMER
2J, 5J
7.5J, 15J, 25J, 50J
2.7J, 5.4J, 10.8J, 21.6J
7.5J, 15J, 25J, 50J
7.5J, 15J, 25J, 50J
IZOD
IZOD
IZOD
TENSILE TEST
TENSILE TEST

Basic and expandable modules for CHKTest 50.x machines

INTEGRATED SOFTWARE IN THE IMPACTest-S MACHINE

ADVANCED PC SOFTWARE IMPACTest

EXTENDED MODULE FOR IMPACTest SOFTWARE

Designed for model CHKTest 50-D.3

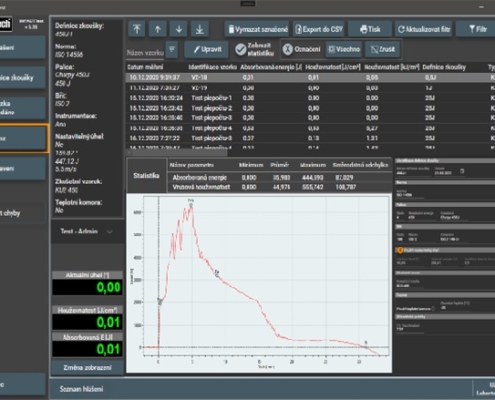

EXTENDED INSTRUMENTATION MODULE FOR IMPACTest SOFTWARE

Designed for model CHKTest 50-D.3

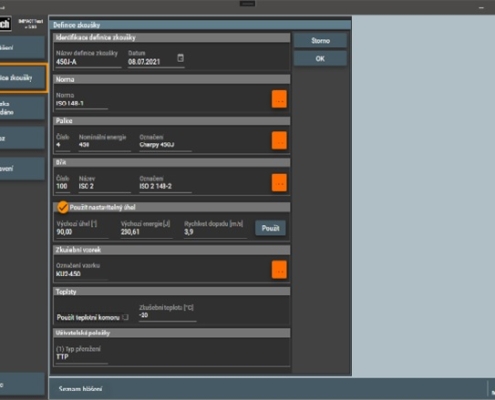

EXTENDED MODULE A – ADJUSTABLE ANGLE TO IMPACTest SOFTWARE

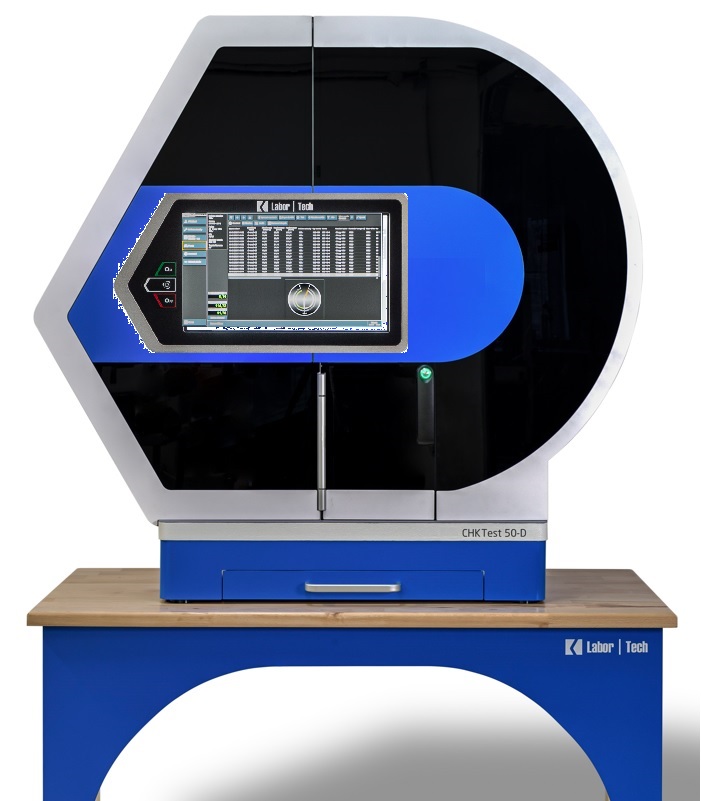

CHKTest 50-BASIC – NEW Edition 30

Impact hammer with electric hammer stroke, energy up to 50J and integrated PC …

CHKTest 50-BASIS

TOP Impact hammer up to 50J with integrated PC and sophisticated electric lifting of the hammer to the starting position.

Hammer code – 1.09010525
Number of initial positions of the hammer: 3 basic + possibility of setting any initial angle (A-MODULE)
Setting the initial angle of the hammer – automatically from the IMPACTTest SW – 2.9 m/s, 3.46 m/s and 3.8 m/s
Test evaluation – using a 21.5″ touch LCD monitor integrated in the machine
Machine expansion – possibility of performing INSTRUMENTATION, ADJUSTABLE ANGLE, X-RUNNER, etc.

Supplied inputs and let us work. We will fulfill your ideas.
