AVS. 3 – AUTOMATIC BALANCING MACHINE WITH CORRECTION BY DRILLING – BY MANIPULATOR
Semi-automatic vertical balancing machine VSTest designed for balancing of PKW pressure discs. The balancing machine has a fully automated cycle, i.e. it detects an imbalance, corrects it by drilling at a precisely defined place, and performs a control measurement. The machine operator only inserts and removes the parts.
Characteristics and description:
-
- Vertical balancing machine with 1-plane measurement with manual loading and unloading

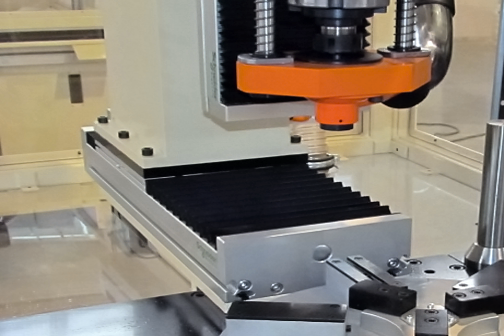

- Correction of unbalance by a drilling unit with a suction device with efficiency of more than 95%

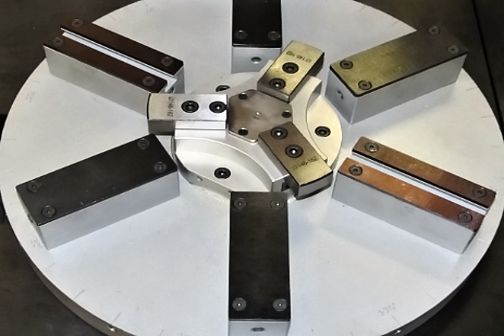

- Automatic centering and clamping of the pressure plate, including fixing during drilling
- Clamping of parts – pneumatic with automatic centering and easy collet replacement
- Machine calibration in accordance with ISO 21940-21
- SIEMENS Simatic S7 1500 control system incl. LCD.
- Destination – AUTOMOTIVE

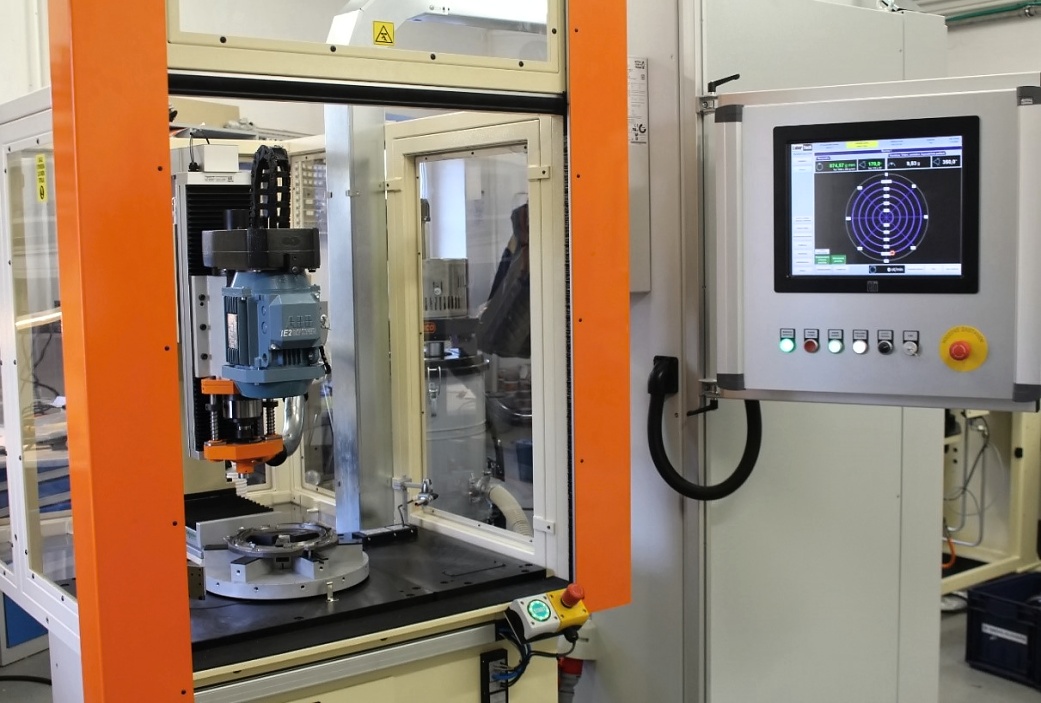

- Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software at the base of the machine.
