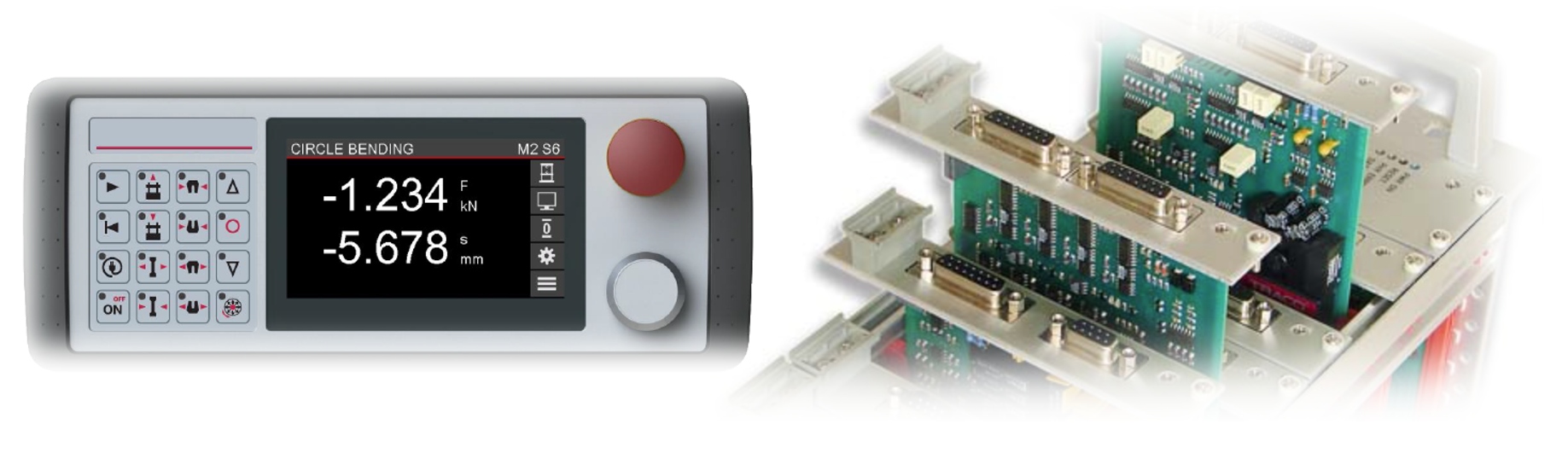

Measuring and control electronics

LABORTECH offers high-quality, reliable and proven measuring and control electronics. The backbone measurement and control electronics for all our tensile, compression, bending and torsion testing machines is the EDCi series, with a sampling frequency of up to 10kHz. For impact instrumented tests we use measuring electronics with a sampling frequency of up to 4MHz. Simpler applications and automated test systems are controlled by SIMATIC systems in conjunction with LCD touchscreens of various sizes.

Measuring and control electronics …

… we can measure and control the testing process accurately, reliably and stably…

Choosing the right electronics comes down to what application it is used for and how fast and long you need to measure.

After 27 years of experience, we always know where and how to deploy the right electronics and controls.

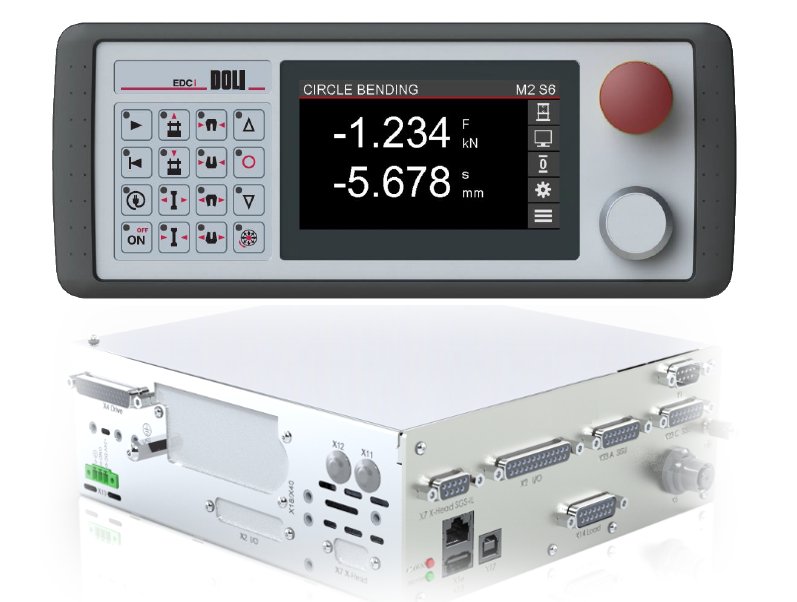

MEASURING AND CONTROL ELECTRONICS OF THE EDCI SERIES

Basic description and function:

LABORTECH introduces a new generation of measurement, control and regulation electronics. Proven features and unique modularity have been enhanced with higher performance, new interfaces and better components. The result is intelligent high-performance measurement and control electronics that work with almost all test machines and all types of application software.

Characteristics:

Sampling rate up to 10kHz • Internal frequency 64 bit, data collection 32 bit, AD 24 bit, arithmetically • Resolution level of analog signals ± 250,000 pieces (20 ms) • PC connection – Ethernet 10/100 Mbit, USB 2.0 • Integrated safety concept according to EN ISO 13850 • Preparation for CENTRAL-STOP • Integrated DOPE adjustment software • Expandable by 3+3 channels • Analog drive control ±10 V, 5-300 mA • Integrated RS232 connector • Preparation for RMCi 6, 8 and 10 remote control

Usage:

Electromechanical and servo-hydraulic testing machines, dynamic and fatigue testing machines, CREEPTest machines, torsion systems, etc. SamplingfrequencySamplingfrequency

DATA SHEET

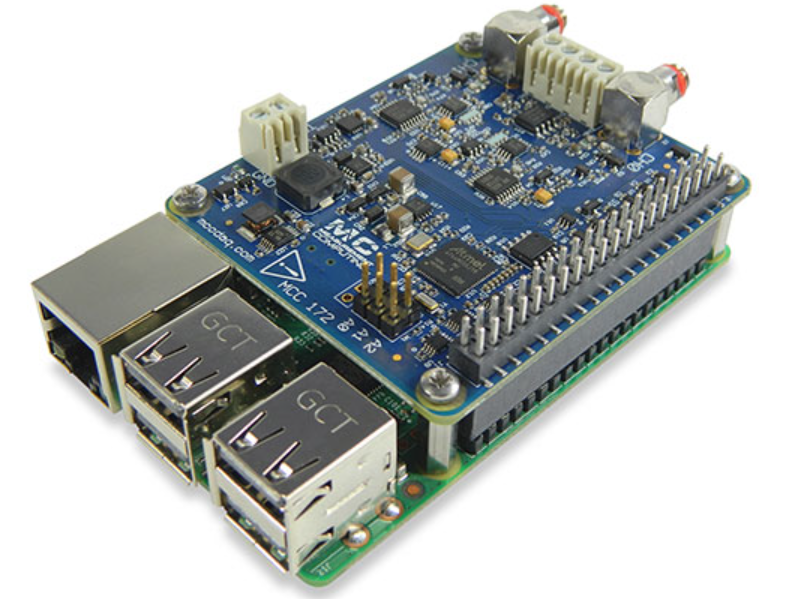

MEASURING ELECTRONICS FOR FAST PROCESSES MC22 SERIES

Basic description and function:

The MC22 series offers high-speed, multifunctional data collection in a compact design. These measuring electronics are characterized by synchronous and simultaneous voltage input, temperature input, waveform output, counter input, quadrature encoder input, timer output and digital I/O, which ensures deterministic I/O between all types of signals. measuring electronics measuring electronics

Characteristics:.

Sampling rate up to 1 MS/s • Synchronous analog, digital and I/O counter/timer • 16 SE/8 DIFF 8 analog inputs, software selectable per channel • Expandable up to 64 SE/32 DIFF • Up to four analog outputs • 24 high-speed digital I/O lines • Four 32-bit counting channels • Low latency • Quadrature encoder support • Including TR-2U external source Supported operating systems • Windows® 10/8/7/64- Sampling frequency up to 200kHzSampling frequency up to 200kHz

Usage:.

Instrumented systems CHK and DP, measurement of fast processes with data collection. InstrumentaceInstrumentaceInstrumentacestrojenstrumentacezkušebnístroje

DATA SHEET

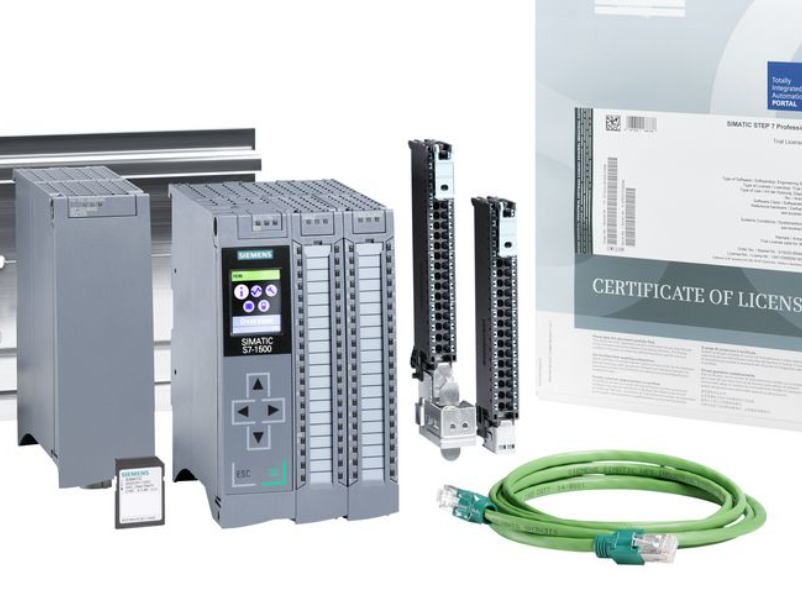

MEASURING AND CONTROL ELECTRONICS OF THE SIMATIC SERIES

Basic description and function:

SIMATIC systems enable us to achieve maximum productivity and quality in our production processes thanks to a powerful system bus, fast system response and fast command processing. The Profinet interface ensures deterministic system behaviour and thus offers reproducibility and response time accuracy. Display results on the operator panel (HMI), web server and CPU display.

Characteristics:.

Sampling frequency up to 200kHz • Synchronous analog, digital and counter / I / O timer • signal connection – digital, analog (voltage, current, mV / V) • PID, PWM, PTO control • program control via HMI display unit • communication PROFINET, PROFIBUS, IO-LINK, TCP MODUBS, RS-232, RS-485 • safety function program cycle 1ms. vysokorychlostníchvysokorychlostních Sampling frequency up to 200kHzSampling frequency uSampling frequency up to 200kHzp to 200kHz

Usage:.

CHK impact pendulums and Dropweight tester, testing machines for long-term CREEP tests, automated test systems, torsion test systems, AUTOMOTIVE testing machines, hydraulic aggregates
