Testing and inspection of pkw couplings

AS.1 – TESTING AND INSPECTIONS OF PKW COUPLING – A TESTING ROOMS AND LABORATORIES

A EDHTest 5.2022 Special Electromechanical Testing Machine … designed for testing and adjusting of complete convex and XTD PKW couplings in testing and laboratory rooms. These machines are characterized by a very precise measurement of the compressive and tripping forces, the inertia, the flatness measurement and the XTD system setting.

Features:

- Stand construction with four hard chrome guide bars and fixed crossbar guiding
- Deployment – testing room and laboratory
- Manual loading and unloading of the PKW coupling into the working area of the machine
- Set PKW coupling type XTD
- Test force 20kN – tripping, pressing
- Test speed 300 mm / sec
- 20-channel clutch parameter measurement
- Power measurement system in accordance with EN 7500-1
- DATAMATRIX extension option
- Operation via Touch LCD Monitors

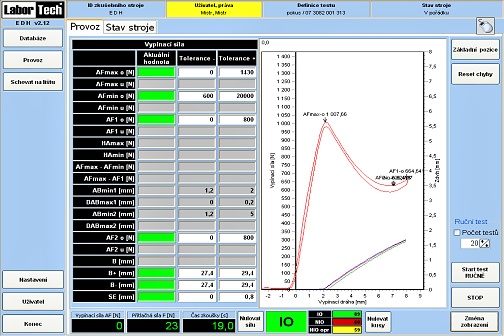

- Software EDHXtend v. 2Characteristic

Charakteristické vlastnosti:

More information:

Contact us:

AS.2 – TESTING AND CONTROL OF PKW CLUTCHES – INSTALLATION, TESTING AND ADJUSTMENT LINES

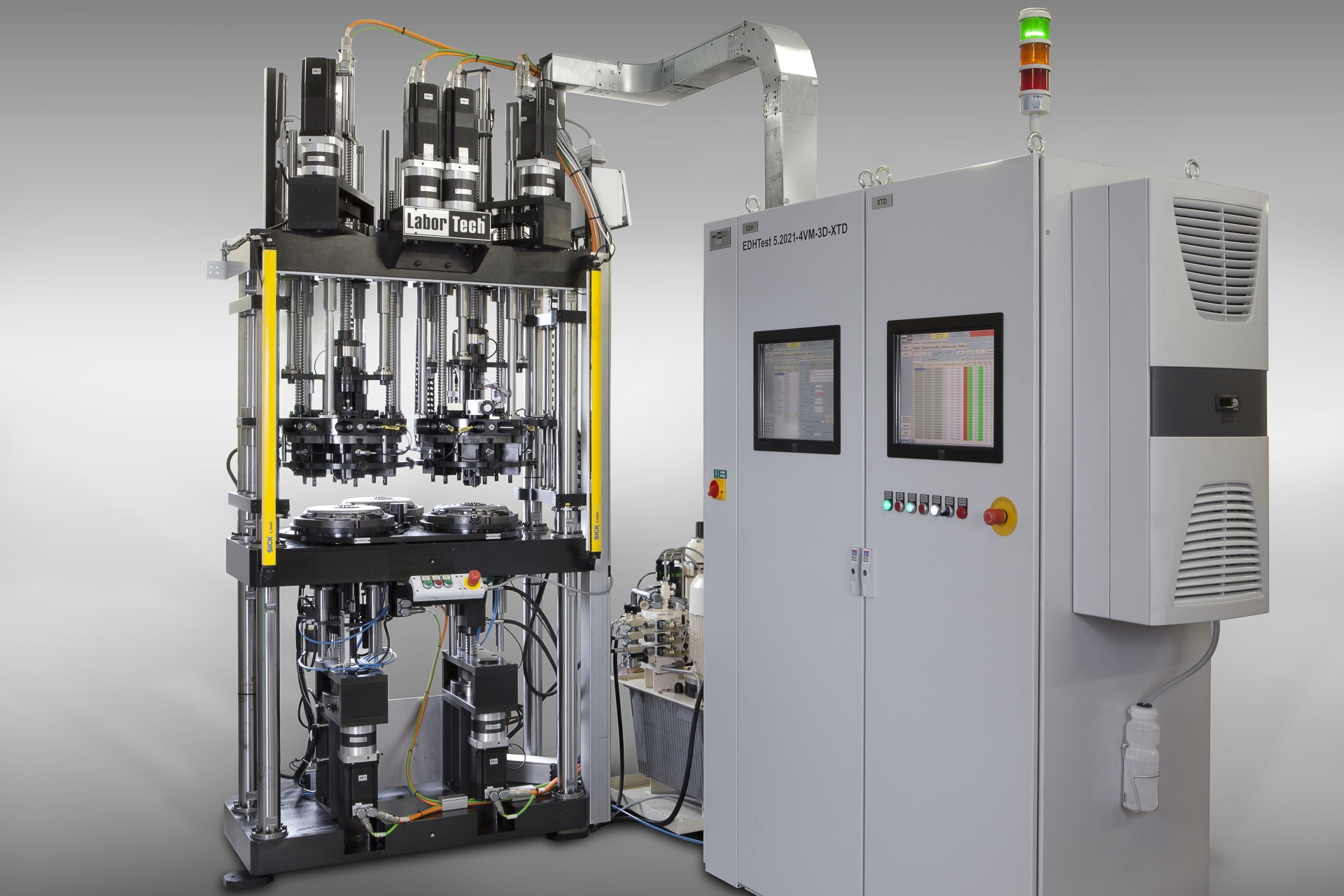

Special Electromechanical Carousel Testing Machine series EDHTest 5.2021 … designed for 100% inspection and adjustment of complete convex and XTD PKW couplings in assembly, testing and adjustment lines. These machines are characterized by velocity and precise precision measurement of thrust and release forces, thumbflakes, flatness measurement and XTD system setup in the serial line.

Features:

- Stand construction with four hard chrome guide bars and fixed crossbar guide
- Vertical version with 2 test positions and 1 loading and unloading position.
- Installation – mounting, testing and adjustment line
- Robotic loading and unloading of the PKW coupling into the carousel work area of the machine
- Taktzeit – PKW coupling setting within 20 sec, setting XTD type within 36 sec.
- Test force 20kN – tripping, pushing
- Test speed 300 mm / sec
- 20-channel clutch parameter measurement
- Power measurement system in accordance with EN 7500-1
- DATAMATRIX extension option
- Operation via Touch LCD Monitors

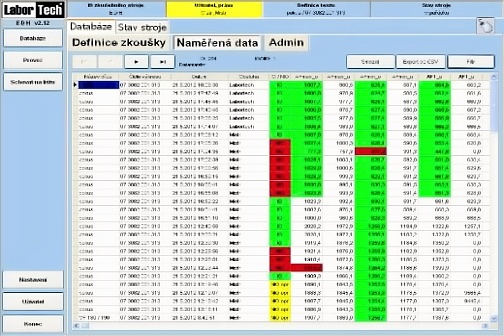

- Software EDHXtend v. 2

Charakteristické vlastnosti:

More information:

Contact us:

AS.3 – TESTING AND CONTROL OF PKW CLUTCHES – INSTALLATION, TESTING AND ADJUSTMENT LINES

EDHTest 6.2022 Special Electromechanical Carousel Testing Machine … designed for 100% inspection and adjustment of complete convex and XTD PKW couplings in assembly, test and adjustment lines. These machines are characterized by low test and adjustment timing, velocity and very precise measurement of thrust and release forces, inaccuracies, flatness measurement, and XTD system setup in the serial line.

Features:

- Software EDHXtend v. 3
- Stand design with five hard chrome guide bars and fixed crossbar guides
- Double carousel design with 2 test positions and 2 loading and unloading positions.
- Installation – mounting, testing and adjustment line
- Robotic loading and unloading of the PKW coupling into the carousel work areas of the machine
- Taktzeit – PKW clutch setting within 10 sec, setting XTD type within 20 sec.
- Test force 20kN – tripping, pushing
- Test speed 300 mm / sec
- 20-channel clutch parameter measurement
- Power measurement system in accordance with EN 7500-1
- DATAMATRIX extension option
- Operation via Touch LCD Monitors
- Software EDHXtend v. 3

Charakteristické vlastnosti:

More information:

Contact us:
