Vertical double-column static machine H.1 series

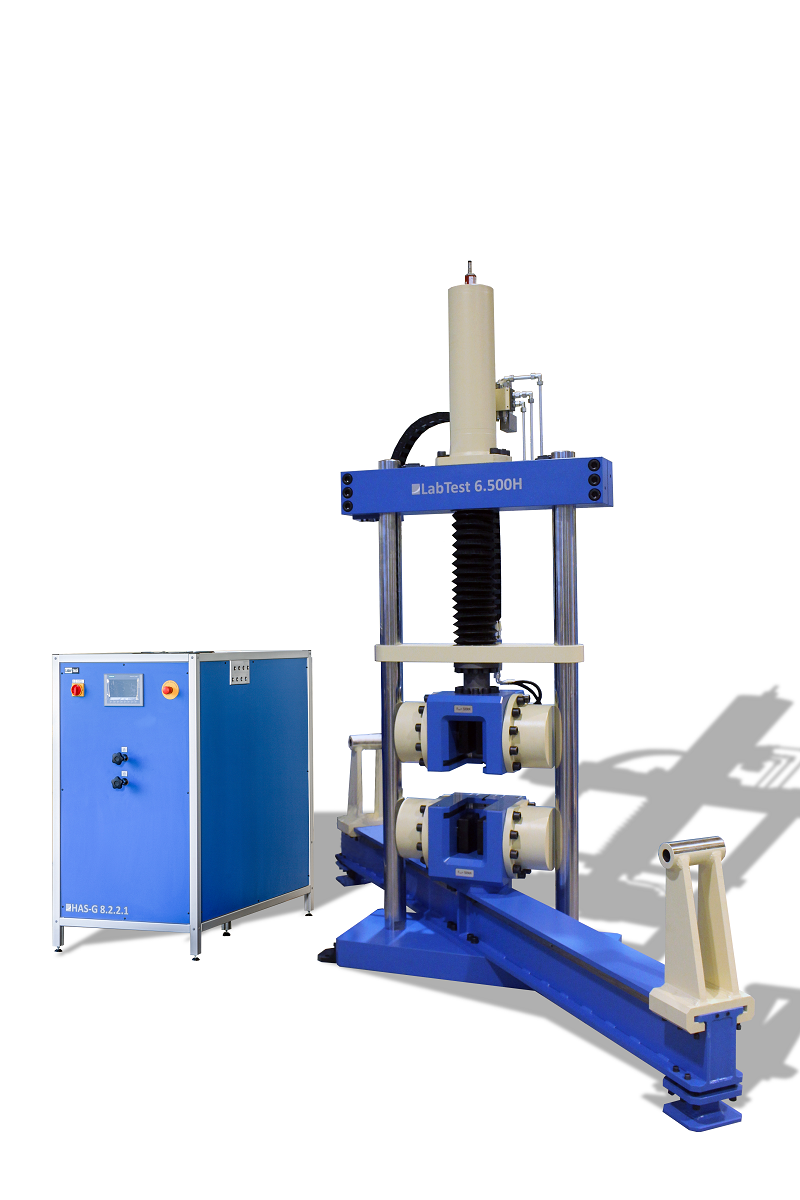

H.1 – Vertical double-column static machine up to 500KN

The H.1 servo-hydraulic testing machines of a double-column design up to 500 kN are designed for safe and effective testing of materials and whole products in tension, pressure, bending, shear and torsion. This range of machines is characterized by high frame stiffness and mechanical resistance. The basic equipment of the machine contains a silent and economical hydraulic unit with diagnostics HALT 18 – SIEMENS.

Main advantages and features:

- Floortop design with two hard chrome guide bars and a fixed crossbar guide
- Modular design – variants of the machine with a fixed or movable crossbar
- High rigidity and mechanical resistance of the machine, combined with high level ergonomics
- Powerful compact hybrid hydraulic units HAS and HAS-G, low noise <65 dB
- Diagnosis of hydraulic unit HALT 18 SIEMENS in standard
- Integrated new safety interface according to EN ISO 13850
- Accuracy class according to EN ISO 7500-1, ASTM E4:
  - Accuracy class 1 according to EN ISO 7500-1 from 0.3% of load cell nominal range
  - Accuracy class 0.5 according to EN ISO 7500-1 from 1% of load cell nominal range
- Data collection rate up to 10kHz from all test channels
